BMH05108 Module Resources
Quick Start

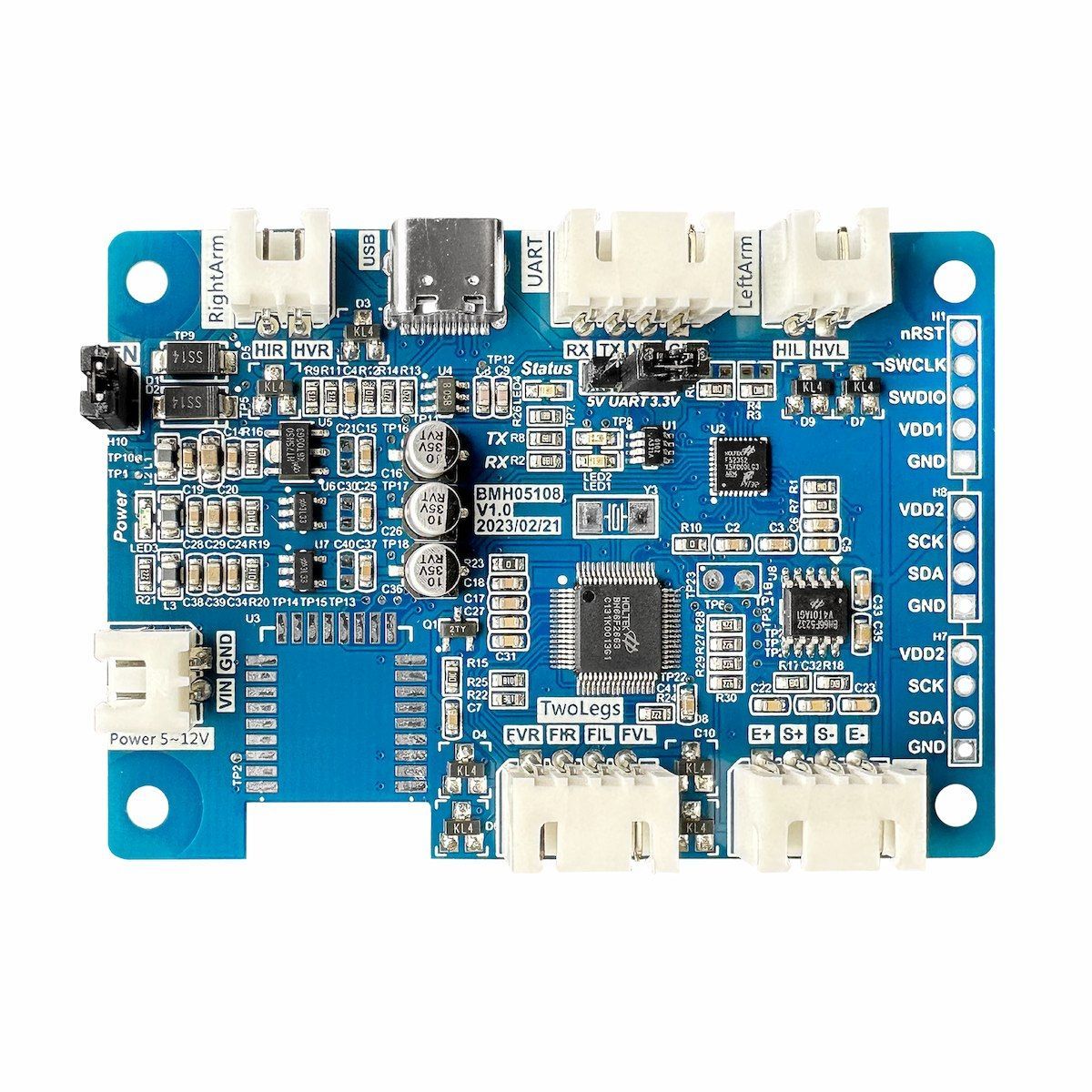

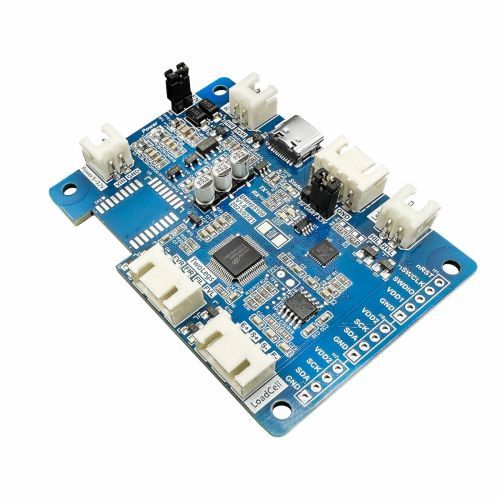

BMH05108 is a body composition analysis module for commercial body composition analyzers, self-service health check kiosks, fitness equipment and similar products. It provides interfaces for weight, impedance, and built-in body composition algorithm workflows, so customers can validate module communication, calibration, and performance before the host application is fully developed.
- Read the
BMH05108 Datasheetto confirm the power supply, interfaces, application circuits, communication protocol, and body composition algorithm inputs and outputs. - Complete the module power, communication, weight measurement, and impedance measurement connections according to the datasheet.
- Use
BMH05108 Calibration and FAQto complete production calibration or prototype calibration. - To evaluate the module quickly on a PC, install
BMH05108 Windows Serial Evaluation Tool, connect the module through its USB virtual COM port (module USB connected directly to the PC) or through its serial port (via a generic USB-to-serial adapter), send commands, and check module responses in the UI. - For mechanical integration, refer to
BMH05108 Mechanical Drawingto confirm the outline, frame, and mounting hole positions. - For compliance records, download
BMH05108 RoHS Certification.
BMH05108 Datasheet: shown on the English page, currently V1.7. It covers product overview, interfaces, electrical characteristics, weight and impedance characteristics, body composition characteristics, and communication protocol.BMH05108 中文规格书: shown on the Chinese page with the Simplified Chinese datasheet.BMH05108 Calibration and FAQ: explains the weight calibration flow, the related commands and common questions, with an English and a Chinese edition for the matching language page.BMH05108 Mechanical Drawing: DXF mechanical drawing shared by all language pages.BMH05108 Windows Serial Evaluation Tool: serial-port PC software supporting both USB virtual COM port and serial connections, for quick command and response evaluation. It is also included in the complete resource package for offline evaluation.
For first evaluation, download the BMH05108 Complete Resource Package. It includes the datasheets, calibration and FAQ, mechanical drawing, certification file, and the Windows serial evaluation tool for offline review and project handoff. Each item can also be downloaded individually.
- Resource pack version: based on the BMH05108 module materials as of 2026-09-24.
- Technical support: tony@e-besthealth.com (project contact)
- Business inquiries: info@e-besthealth.com
- Website: https://www.e-besthealth.com
- Address: Office 301, Building 10, Xinzhu Garden, No.4 Xinzhu Road, Songshan Lake, Dongguan, Guangdong, China
- Phone: +86-769-26261311
