Overview
The device is a Flash Memory 8-bit high performance RISC architecture microcontroller device with Continuous Glucose Monitoring (CGM) AFE module that specifically designed for CGM applications.
For memory features, the Flash Memory offers users the convenience of Flash Memory multiprogramming features. Other memory includes an area of RAM Data Memory as well as an area of true EEPROM memory for storage of non-volatile data such as serial numbers, calibration data etc. By using the In Application Programming technology, users have a convenient means to directly store their measured data in the Flash Program Memory as well as having the ability to easily update their application programs.
Analog features include a multi-channel 24-bit Delta Sigma A/D converter, three 12-bit D/A converters and three internal operational amplifiers. Multiple and extremely flexible Timer Modules provide timing, pulse generation and PWM generation functions. Communication with the outside world is catered for by including fully integrated SPI and UART interface functions, two popular interfaces which provide designers with a means of easy comminucation with external peripheral hardware. Protective features such as an internal Watchdog Timer and Low Voltage Reset coupled with excellent noise immunity and ESD protection ensure that reliable operation is maintained in hostile electrical environments.
A full choice of internal high and low oscillator functions are provided including three fully integrated system oscillators which require no external components for their implementation. The ability to operate and switch dynamically between a range of operating modes using different clock sources gives users the ability to optimise microcontroller operation and minimise power consumption.
With regard to CGM applications, the device has integrated many of the functions required by these products. These include functions such as Internal Reference Voltage generator, 24-bit Delta Sigma A/D converter, 12-bit D/A Converters and operational amplifiers, etc. The inclusion of flexible I/O programming features, 16-bit Cyclic Redundancy Check function, Time Base functions along with many other features enhance the versatility of the device to suit for CGM applications.
Documents
BH66F2455v100
Contains electrical characteristics, register descriptions, and system architecture. Please refer to it before solution design and software development.
QFN24
Includes package dimensions, pad layout, and assembly requirements. Please use it for PCB layout and process evaluation.

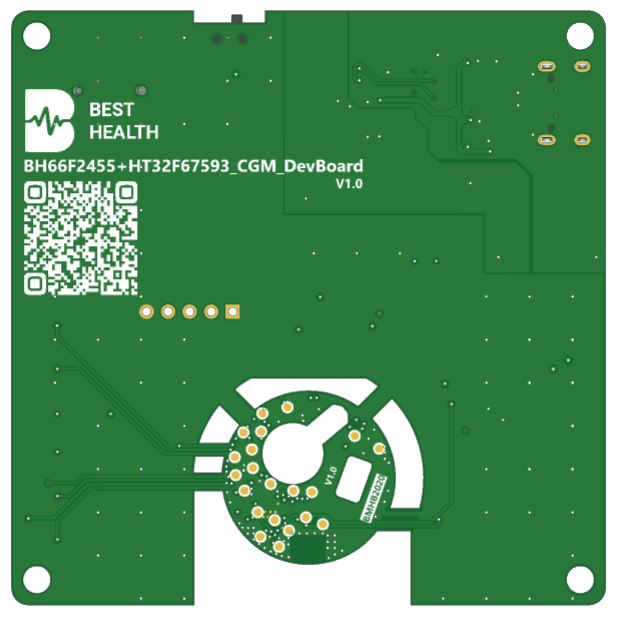

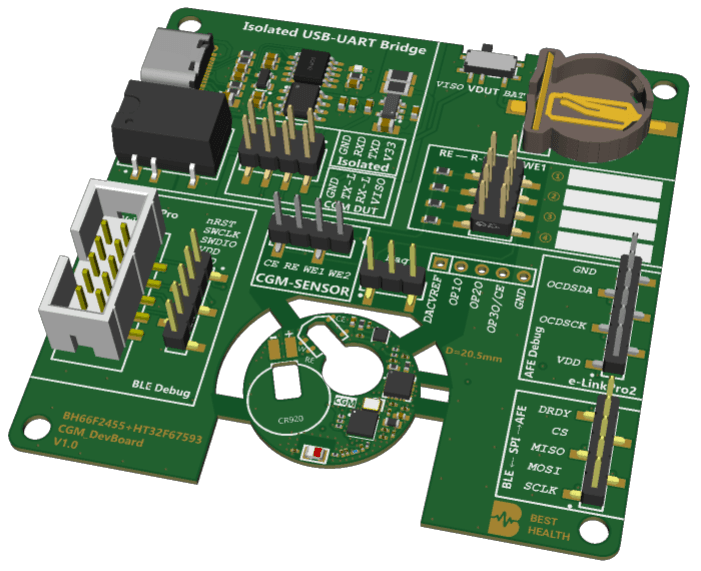

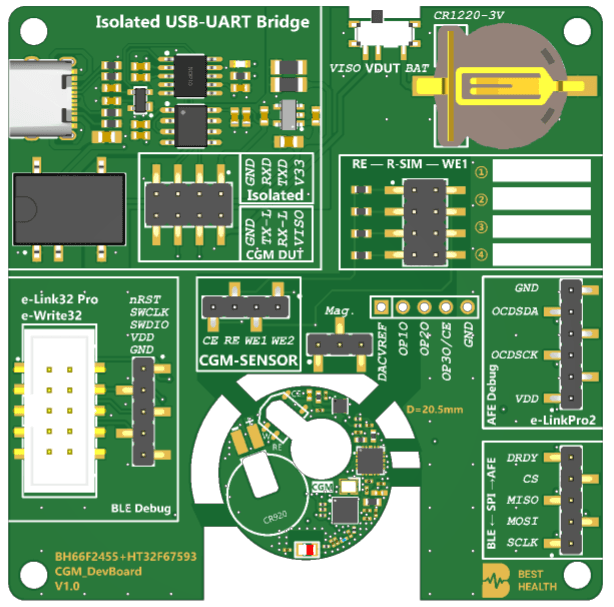

🔬 Development Stage
Tools for development and debugging
💻 Software
IDE-3000
(IDE Software)The HT-IDE3000 is a simulation software specially developed for HOLTEK 8-bit MCUs. When used together with OCDS EV chip, it will implement a series of operations such as single step, full speed, breakpoint setting, RAM monitor, etc.
IDE-3000
The HT-IDE3000 is a simulation software specially developed for HOLTEK 8-bit MCUs. When used together with OCDS EV chip, it will implement a series of operations such as single step, full speed, breakpoint setting, RAM monitor, etc.
HT-IDE3000 User’s Guide
🔧 Hardware
e-LinkPro2
(Debug Hardware)The e-LinkPro2 function is compatible with the e-Link and which is an online debug adaptor for Holtek's new generation of OCDS architecture Flash MCUs. Together with the HT-IDE3000 software it allows users to program and debug programs on their target boards. The e-LinkPro2 also provides an ICP function for Flash MCUs. When connected to a PC and when used together with the HOPE3000 software the e-LinkPro2 can also be used as a low volume engineering programmer for HT8 Flash MCUs.
Holtek e-Link for 8-bit MCU OCDS User’s Guide
🏭 Small-scale Production
Tools for small batch programming
💻 Software
IDE-3000
(IDE Software)The HT-IDE3000 is a simulation software specially developed for HOLTEK 8-bit MCUs. When used together with OCDS EV chip, it will implement a series of operations such as single step, full speed, breakpoint setting, RAM monitor, etc.
IDE-3000
The HT-IDE3000 is a simulation software specially developed for HOLTEK 8-bit MCUs. When used together with OCDS EV chip, it will implement a series of operations such as single step, full speed, breakpoint setting, RAM monitor, etc.
HT-IDE3000 User’s Guide
HOPE5000
(Programming Software)The HOPE5000 is a software designed by Holtek for programming MCUs. The software is connected to the writer via a USB cable to transmit the related programming data.
HOPE5000
The HOPE5000 is a software designed by Holtek for programming MCUs. The software is connected to the writer via a USB cable to transmit the related programming data.
HOPE5000 User guide
🔧 Hardware
e-Socket
(Programming Hardware)The e-Socket is a socket which is used together with e-WriterPro. MCUs with the same package types can use the same e-Socket for programming. It is not necessary to purchase individual programming adaptors for different MCUs. The e-Socket is designed with a programming counter which enables the e-WriterPro to remind users when to replace the e-Socket with a new one after a certain amount of times. This function is provided to maintain high programming quality.
e-WriterPro2
(Programming Hardware)The e-WriterPro2 is an upgraded version programmer of the e-WriterPro, which is fully compatible with the previous version, and it can be used not only as a programming tool for all of Holtek’s OTP and Flash devices during development stage but can also be used for small to medium volume production purposes.
🏢 Mass Production
Tools for high-volume manufacturing
💻 Software
IDE-3000
(IDE Software)The HT-IDE3000 is a simulation software specially developed for HOLTEK 8-bit MCUs. When used together with OCDS EV chip, it will implement a series of operations such as single step, full speed, breakpoint setting, RAM monitor, etc.
IDE-3000
The HT-IDE3000 is a simulation software specially developed for HOLTEK 8-bit MCUs. When used together with OCDS EV chip, it will implement a series of operations such as single step, full speed, breakpoint setting, RAM monitor, etc.
HT-IDE3000 User’s Guide
🔧 Hardware
GangWriter00-8
(Programming Hardware)The product is an upgraded gang programmer of Gang-Writer32-8 and Gang-Writer8-8. It is composed of a development board and two programming modules and supports programming both Holtek 8-bit and 32-bit MCUs. Each programming module includes 4 programming interfaces, and one development board can connect up to 4 programming modules. This allows the product to program up to 16 MCUs simultaneously, with support for parallel programming across 2, 4, 6, 8, 12, and 16 sites.
e-Socket
(Programming Hardware)The e-Socket is a socket which is used together with e-WriterPro. MCUs with the same package types can use the same e-Socket for programming. It is not necessary to purchase individual programming adaptors for different MCUs. The e-Socket is designed with a programming counter which enables the e-WriterPro to remind users when to replace the e-Socket with a new one after a certain amount of times. This function is provided to maintain high programming quality.
e-WriterPro2
(Programming Hardware)The e-WriterPro2 is an upgraded version programmer of the e-WriterPro, which is fully compatible with the previous version, and it can be used not only as a programming tool for all of Holtek’s OTP and Flash devices during development stage but can also be used for small to medium volume production purposes.
