Body Composition Analyzer SoC Solution
Bio-impedance analysis (BIA) for accurate body fat, muscle mass, and hydration measurement with integrated high-precision AFE and advanced algorithms
Solution Overview
Body composition analysis using bio-impedance analysis (BIA) technology provides comprehensive health metrics including body fat percentage, muscle mass, bone mass, and hydration levels. Our solution integrates high-precision impedance measurement AFE, multi-frequency excitation, and advanced body composition algorithms, enabling accurate and repeatable measurements for home and professional use.
Application Areas
- Smart body composition scales
- Professional fitness assessment devices
- Medical body composition analyzers
- Multi-parameter health monitoring platforms

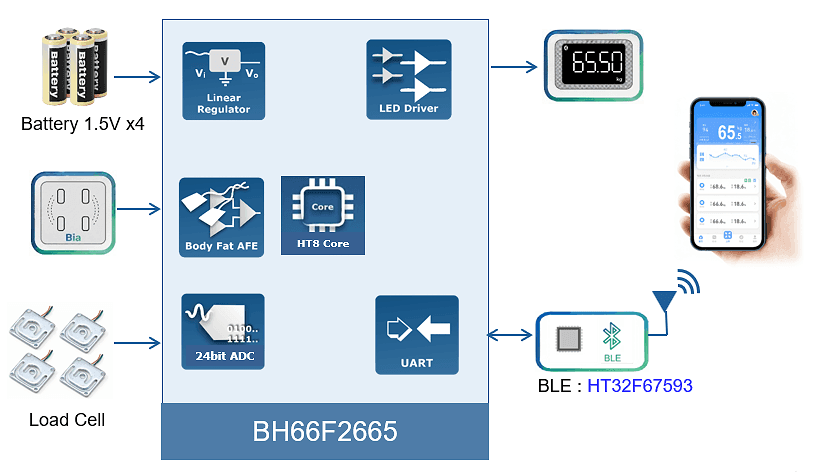

Application Block Diagram
High Precision
24-bit Σ-Δ ADC with 1μV resolution, ENOB > 20 bits
Ultra-Low Power
Sleep current I_sleep < 1.5μA, extends battery life
High Integration
Built-in LCD driver, VREF, temp sensor - simplifies design
Core Features & Benefits
High-Precision BIA Measurement
24-bit ADC with integrated bio-impedance AFE enables ±1% impedance accuracy across 50Ω~1.5KΩ range, supporting multi-segment and multi-frequency analysis.
Ultra-Low Power Design
Sleep current <1.5μA, measurement current ~10mA. Supports 4×AAA batteries for 500+ measurements, ideal for smart scales.
Highly Integrated SoC
Built-in BIA AFE, excitation signal generator, weight sensor interface, LCD driver, and temperature sensor reduce external components by 35%.
Advanced Body Composition Algorithms
Comprehensive algorithm library for body fat %, muscle mass, bone mass, BMI, BMR, visceral fat, and hydration level calculation.
Multi-User Support
Extended memory supports 8+ user profiles with automatic user recognition based on weight and impedance patterns.
Smart Connectivity
Optional BLE/Wi-Fi connectivity for smartphone app integration, enabling trend tracking, goal setting, and cloud synchronization.
Recommended MCU Products
Select the optimal chip model based on your product requirements
BH66F2665
RECOMMENDEDBody Fat Measurement Flash MCU
📊 Key Specifications
✨ Features
- Low Power Consumption and Wide Operating Voltage
- Highly Integrated Memory and Interfaces
- Enhanced System Safety and Reliability
- High-Precision Bia-Sensing Analog Front-End
Development Support & Resources
Comprehensive development resources to accelerate your time-to-market
Need More Technical Support?
Our technical team is ready to provide professional consultation and customized solutions
Frequently Asked Questions
What body composition metrics can be measured?
Our solution supports comprehensive metrics including body fat %, muscle mass, bone mass, body water %, BMI, BMR, visceral fat level, and protein percentage.
What is the difference between single-frequency and multi-frequency BIA?
Single-frequency (50kHz) BIA is suitable for basic body composition analysis. Multi-frequency (5kHz~100kHz) BIA provides more accurate segmental analysis and can differentiate intracellular/extracellular water.
How many user profiles can be stored?
Our high-end MCU (BH67F2493) supports 8+ user profiles with automatic user recognition. The mid-range MCU (BH67F2476) supports 4 user profiles.
What is the typical measurement accuracy?
Impedance measurement accuracy is ±1% across 50Ω~1.5KΩ range. Body composition metrics accuracy depends on algorithm calibration, typically ±3-5% for body fat percentage.
Is smartphone connectivity supported?
Yes, our high-end MCU supports BLE/Wi-Fi connectivity for smartphone app integration, enabling trend tracking, goal setting, and cloud synchronization.
Can the solution support segmental BIA analysis?
Yes, our high-end MCU (BH67F2493) supports 8-electrode segmental BIA for separate analysis of arms, legs, and trunk.
